Pneumatic Hook Pull Mesh White And Blue Fence Mesh Welding Equipment
Fence Mesh Welding Equipment Introduction:
Fence Mesh Welding Machine is controlled by computer and PLC programming controller with high degree of automation. Welding hot rolled ribbed, cold rolled ribbed, hot rolled round, cold rolled round and other materials, wide adaptability. According to the user's electricity consumption, the use of one or sub welding, flexibility. The unit design is separable structure, convenient specification adjustment and maintenance. The welding system of transformer, thyristor, upper and lower electrode adopts forced water cooling and is equipped with flow protection device, so the unit can work continuously and reliably. The pressure of the welding pneumatic system is stepless and adjustable, which can quickly deal with the change of steel bar specifications. Welding pressure is uniform to ensure the quality of all solder joints. When welding the standard set mesh, the position of the upper and lower electrodes need not be adjusted, so that it does not take time to change the distance price. Greatly increase the actual productivity.
Fence Mesh Welding Equipment Features:
1. The maximum width of the mesh of the CNC mesh bar welding machine is 3.0 meters.
2. The welding diameter of CNC mesh bar welding machine is 2.5mm-6mm.
3. Fence mesh welding equipment welding transformer air self cooling.
4. Fence mesh welding equipment welding form a pressing, controlled welding.
5. The use of cycle fine tuning welding, reduce welding pollution.
6. Fence mesh welding equipment weld pressure adjustable.
7. Fence mesh welding equipment weld wire diameter size adjustable.
8. Fence mesh welding equipment cross wire hole distance input computer hole distance automatic change.
9. Fence mesh welding equipment is widely used in railway fence, highway fence bridge high mesh welding.
Fence Mesh Welding Equipment Technical Parameters:
| Model | DX-GWC-2000 | GWC-2500 |
| Wire diameter | 3-6mm | 3-6mm |
| Mesh width | 2000mm | 2500mm |
| Longitudinal wire distance | 50-250mm | 50-250mm |
| Cross wire space | 50-200mm | 50-200mm |
| Mesh length | Max 3000mm | Max 3000mm |
| Welding transformer | 150KVA*5PCS | 150KVA*6PCS |
| Number of welding electrode | 40PCS | 48PCS |
| Material of welding electrode | CuCrZr | CuCrZr |
| Pulling mesh | By pneumatic hook | By pneumatic hook |
| Control system | PLC and touch screen | PLC and touch screen |
| Brand of frequency converter | Delta China | Delta China |
| Control switch | Schneider France | Schneider France |
| Main motor | 4.0kw | 5.5kw |
| Welding speed | 40-60 times per min | 40-60 times per min |
| Machine weight | 3500kg | 3800kg |
| Power transformer supply | 120kva | 120kva |
| Labor required | 2 workers | 2 workers |
Fence Mesh Welding Equipment Applications:
railway fence, highway fence bridge high mesh welding.
Fence Mesh Welding Equipment Package:

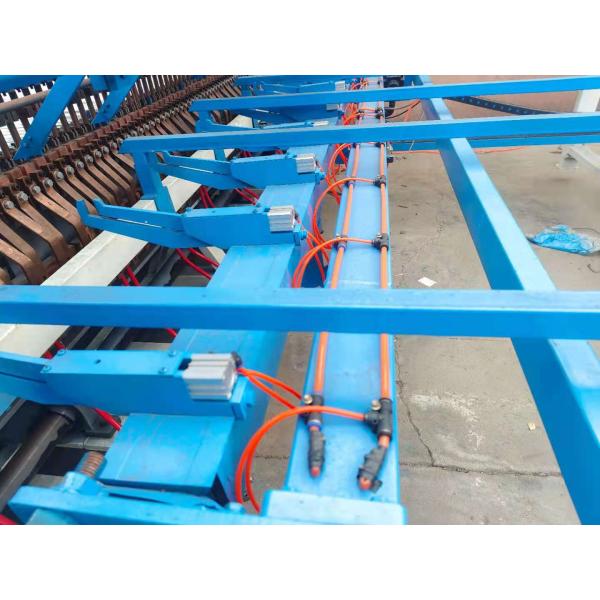

Photos of Fence Mesh Welding Equipment:
